在Docker上搭建Yarn集群和HDFS集群

Posted on Edited on In

yarn作为目前最流行的分布式计算资源管理平台，为Hadoop MR、spark、Flink等提供了资源容器

Docker File

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
# 基础镜像
FROM hub.c.163.com/public/centos
RUN yum clean all
RUN yum install -y yum-plugin-ovl || true
# 安装基础的工具包
RUN yum install -y vim tar wget curl rsync bzip2 iptables tcpdump less telnet net-tools lsof sysstat cronie python-setuptools
RUN yum clean all

RUN cp -f /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
EXPOSE 22
RUN mkdir -p /etc/supervisor/conf.d/
RUN echo [include] >> /etc/supervisord.conf
RUN echo 'files = /etc/supervisor/conf.d/*.conf' >> /etc/supervisord.conf
#COPY sshd.conf /etc/supervisor/conf.d/sshd.conf
CMD ["/usr/bin/supervisord"]



# 镜像的作者
MAINTAINER averyzhang
# 安装openssh-server和sudo软件包，并且将sshd的UsePAM参数设置成no
RUN yum install -y openssh-server sudo
RUN sed -i 's/UsePAM yes/UsePAM no/g' /etc/ssh/sshd_config
#安装openssh-clients
RUN yum  install -y openssh-clients

# 添加测试用户root，密码abc.123，并且将此用户添加到sudoers里
RUN echo "root:abc.123" | chpasswd
RUN echo "root   ALL=(ALL)       ALL" >> /etc/sudoers
# 下面这两句比较特殊，
# 在centos6上必须要有，否则创建出来的容器sshd不能登录

# 为了避免文件已存在报错，首先删掉私钥文件
RUN rm -rf /etc/ssh/ssh_host_rsa_key
RUN rm -rf /etc/ssh/ssh_host_dsa_key

RUN ssh-keygen -t dsa -f /etc/ssh/ssh_host_dsa_key
RUN ssh-keygen -t rsa -f /etc/ssh/ssh_host_rsa_key

# 启动sshd服务并且暴露22端口
# RUN mkdir /var/run/sshd
EXPOSE 22
CMD ["/usr/sbin/sshd", "-D"]
###### 以上建立centos-ssh

# 安装java
RUN yum install -y java-1.8.0-openjdk.x86_64 java-1.8.0-openjdk-devel.x86_64
## 添加环境变量
ENV JAVA_HOME /usr/lib/jvm/jre-openjdk/
ENV JRE_HOME ${JAVA_HOME}
ENV PATH $JAVA_HOME/bin:$PATH
ENV CLASSPATH $CLASSPATH:.:$JAVA_HOME/lib

RUN echo "export JAVA_HOME=/usr/lib/jvm/jre-openjdk/" >> /etc/profile.d/java.sh
RUN echo "export JRE_HOME=${JAVA_HOME}" >> /etc/profile.d/java.sh
RUN echo "export PATH=$JAVA_HOME/bin:$PATH" >> /etc/profile.d/java.sh
RUN echo "export CLASSPATH=$CLASSPATH:.:$JAVA_HOME/lib" >> /etc/profile.d/java.sh


## 安装scala
RUN mkdir -p /data/
RUN wget https://downloads.lightbend.com/scala/2.10.7/scala-2.10.7.rpm
RUN yum install -y scala-2.10.7.rpm
ENV SCALA_HOME /usr/share/java
RUN echo "export SCALA_HOME=/usr/share/java" >> /etc/profile.d/java.sh


## 安装Hadoop
## RUN wget http://mirror.bit.edu.cn/apache/hadoop/common/hadoop-2.7.7/hadoop-2.7.7.tar.gz
ADD hadoop-2.7.7.tar /data/hadoop
# RUN tar zxvf /data/hadoop-2.7.7.tar -C /data/hadoop
# RUN ln -s /data/hadoop-2.7.7 /data/hadoop
ENV HADOOP_HOME /data/hadoop
ENV HADOOP_CONF_DIR ${HADOOP_HOME}/etc/hadoop
ENV YARN_HOME ${HADOOP_HOME}
ENV YARN_CONF_DIR ${YARN_HOME}/etc/hadoop



RUN echo "export HADOOP_HOME=/data/hadoop" >> /etc/profile.d/hadoop.sh
RUN echo "export HADOOP_CONF_DIR=${HADOOP_HOME}/etc/hadoop" >> /etc/profile.d/hadoop.sh
RUN echo "export YARN_HOME=${HADOOP_HOME}" >> /etc/profile.d/hadoop.sh
RUN echo "export YARN_CONF_DIR=${YARN_HOME}/etc/hadoop" >> /etc/profile.d/hadoop.sh

制作image

1
docker build -t="avery/centos-yarn" .

创建yarn节点

1
2
3
4
docker run --name yarn0 --hostname yarn0 -d -P -p 50070:50070 -p 8088:8088 avery/centos-yarn
docker run --name yarn1 --hostname yarn1 -d -P avery/centos-yarn
docker run --name yarn2 --hostname yarn2 -d -P avery/centos-yarn
docker run --name yarn3 --hostname yarn3 -d -P avery/centos-yarn

查看三个container的ip:

1
2
3
4
5
6
7
8
% docker inspect --format='{{.NetworkSettings.IPAddress}}' yarn0
172.17.0.2
% docker inspect --format='{{.NetworkSettings.IPAddress}}' yarn1
172.17.0.3
% docker inspect --format='{{.NetworkSettings.IPAddress}}' yarn2
172.17.0.4
% docker inspect --format='{{.NetworkSettings.IPAddress}}' yarn3
172.17.0.5
节点 备注 ip
yarn0 master 172.17.0.2
yarn1 slaver 172.17.0.3
yarn2 slaver 172.17.0.4
yarn3 slaver 172.17.0.5

查看端口

1
2
3
4
5
6
docker container ls -a
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS                     PORTS                                                                     NAMES
e150f9141cbd        avery/centos-yarn   "/usr/sbin/sshd -D"      2 minutes ago       Up 2 minutes               0.0.0.0:32771->22/tcp                                                     yarn3
9fe0eb86b3e9        avery/centos-yarn   "/usr/sbin/sshd -D"      2 minutes ago       Up 2 minutes               0.0.0.0:32770->22/tcp                                                     yarn2
1d5c0ea3d3b3        avery/centos-yarn   "/usr/sbin/sshd -D"      2 minutes ago       Up 2 minutes               0.0.0.0:32769->22/tcp                                                     yarn1
60a9cb47ff0c        avery/centos-yarn   "/usr/sbin/sshd -D"      2 minutes ago       Up 2 minutes               0.0.0.0:8088->8088/tcp, 0.0.0.0:50070->50070/tcp, 0.0.0.0:32768->22/tcp   yarn0

连接container

验证ssh连接

1
2
% ssh root@localhost -p 32774
# 输入密码 abc.123

使用exec

1
docker exec -it yarn0 /bin/bash

修改container的主机名

分别修改三个container的hosts

1
vi /etc/hosts

添加下面配置

1
2
3
4
172.17.0.2      yarn0
172.17.0.3      yarn1
172.17.0.4      yarn2
172.17.0.5      yarn3

ssh 免密

设置ssh免密码登录
在yarn0上执行下面操作

1
2
3
4
5
6
7
8
9
10
cd  ~
mkdir .ssh
cd .ssh
ssh-keygen -t rsa
# (一直按回车即可)
ssh-copy-id -i localhost
ssh-copy-id -i yarn0
ssh-copy-id -i yarn1
ssh-copy-id -i yarn2
ssh-copy-id -i yarn3

在yarn1上执行下面操作

1
2
3
4
5
6
7
8
cd  ~
cd .ssh
ssh-keygen -t rsa
# (一直按回车即可)
ssh-copy-id -i localhost
ssh-copy-id -i yarn1
ssh-copy-id -i yarn2
ssh-copy-id -i yarn3

在yarn2上执行下面操作

1
2
3
4
5
6
7
8
9
cd  ~
cd .ssh
ssh-keygen -t rsa
# (一直按回车即可)
ssh-copy-id -i localhost
ssh-copy-id -i yarn0
ssh-copy-id -i yarn1
ssh-copy-id -i yarn2
ssh-copy-id -i yarn3

至此，Docker搭建Hadoop集群的准备工作

Hadoop 安装

登录yarn0，修改Hadoop配置

配置 Hadoop，cd ~/hadoop-2.7.2/etc/hadoop进入hadoop配置目录，需要配置有以下7个文件：hadoop-env.sh，yarn-env.sh，slaves，core-site.xml，hdfs-site.xml，maprd-site.xml，yarn-site.xml。

在hadoop-env.sh中配置JAVA_HOME

1
2
# The java implementation to use.
export JAVA_HOME=/usr/lib/jvm/jdk1.8.0_77

在yarn-env.sh中配置JAVA_HOME

1
2
# some Java parameters
export JAVA_HOME=/usr/lib/jvm/jdk1.8.0_77

在slaves中配置slave节点的ip或者host，

yarn1
yarn2
yarn3

修改core-site.xml

1
2
3
4
5
6
7
8
9
10
<configuration>
    <property>
        <name>fs.defaultFS</name>
        <value>hdfs://yarn0:9000/</value>
    </property>
    <property>
        <name>hadoop.tmp.dir</name>
        <value>file:/home/fang//hadoop-2.7.2/tmp</value>
    </property>
</configuration>

修改hdfs-site.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
<configuration>
    <property>
        <name>dfs.namenode.secondary.http-address</name>
        <value>yarn0:9001</value>
    </property>
    <property>
        <name>dfs.namenode.name.dir</name>
        <value>file:/home/fang/hadoop-2.7.2/dfs/name</value>
    </property>
    <property>
        <name>dfs.datanode.data.dir</name>
        <value>file:/home/fang/hadoop-2.7.2/dfs/data</value>
    </property>
    <property>
        <name>dfs.replication</name>
        <value>3</value>
    </property>
</configuration>

修改mapred-site.xml

1
2
3
4
5
6
<configuration>
    <property>
        <name>mapreduce.framework.name</name>
        <value>yarn</value>
    </property>
</configuration>

修改yarn-site.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
<configuration>
    <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
    <property>
        <name>yarn.nodemanager.aux-services.mapreduce.shuffle.class</name>
        <value>org.apache.hadoop.mapred.ShuffleHandler</value>
    </property>
    <property>
        <name>yarn.resourcemanager.address</name>
        <value>yarn0:8032</value>
    </property>
    <property>
        <name>yarn.resourcemanager.scheduler.address</name>
        <value>yarn0:8030</value>
    </property>
    <property>
        <name>yarn.resourcemanager.resource-tracker.address</name>
        <value>yarn0:8035</value>
    </property>
    <property>
        <name>yarn.resourcemanager.admin.address</name>
        <value>yarn0:8033</value>
    </property>
    <property>
        <name>yarn.resourcemanager.webapp.address</name>
        <value>yarn0:8088</value>
    </property>
</configuration>

将配置好的hadoop-2.7.2文件夹分发给所有slaves节点

1
2
3
scp -r hadoop/* root@yarn1:/data/hadoop
scp -r hadoop/* root@yarn2:/data/hadoop
scp -r hadoop/* root@yarn3:/data/hadoop

启动HDFS和yarn

格式化HDFS

1
2
3
4
bin/hadoop namenode -format    #格式化namenode
注：若格式化之后重新修改了配置文件，重新格式化之前需要删除tmp，dfs，logs文件夹。
sbin/start-dfs.sh              #启动dfs
sbin/start-yarn.sh              #启动yarn

检查

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

[root@yarn0 hadoop]# jps
709 ResourceManager
984 Jps
346 NameNode
543 SecondaryNameNode
[root@yarn0 hadoop]# ssh yarn1
Last login: Sun Jun  2 23:21:51 2019 from yarn0
[root@yarn1 ~]# jps
305 NodeManager
449 Jps
200 DataNode
[root@yarn1 ~]# ssh yarn2
Last login: Sun Jun  2 23:22:18 2019 from yarn0
[root@yarn2 ~]# jps
193 DataNode
442 Jps
298 NodeManager
[root@yarn2 ~]# ssh yarn3
Last login: Sun Jun  2 23:22:25 2019 from yarn0
[root@yarn3 ~]# jps
178 DataNode
283 NodeManager
427 Jps

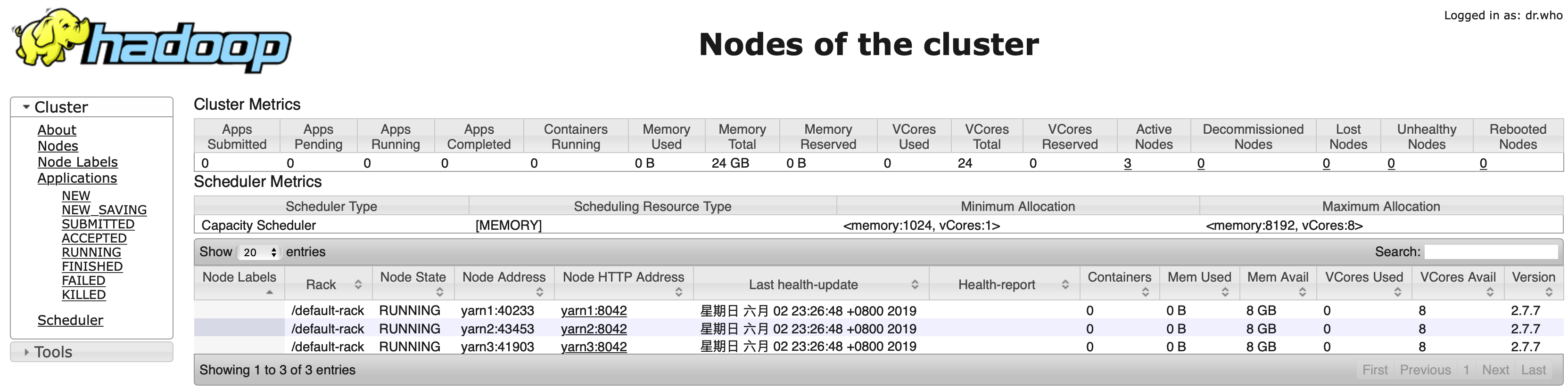

yarn web

浏览器打开 http://localhost:8088

搞定收工
