Flink-window

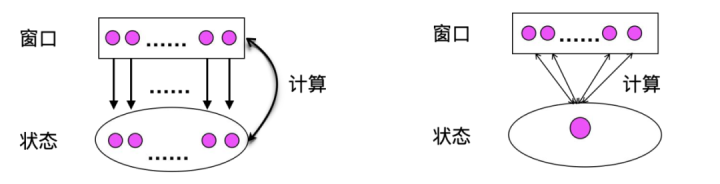

窗口会自动管理状态和触发计算，Flink 提供了丰富的窗口函数来进行计算。主要包括以下两种：

ProcessWindowFunction，全量计算会把所有数据缓存到状态里，一直到窗口结束时统一计算。相对来说，状态会比较大，计算效率也会低一些；
AggregateFunction，增量计算就是来一条数据就算一条，可能我们的状态就会特别的小，计算效率也会比 ProcessWindowFunction 高很多，但是如果状态存储在磁盘频繁访问状态可能会影响性能。

0.1 窗口的触发

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
SingleOutputStreamOperator<ItemEntity> streamOperator = env
        .socketTextStream("127.0.0.1", 9091)
        .map(new MapFunction<String, ItemEntity>() {
            @Override
            public ItemEntity map(String s) throws Exception {
                String[] split = null;
                if (s.isEmpty() || (split = s.split(",")).length != 2) {
                    return null;
                }
                ItemEntity itemEntity = ItemEntity.builder().timestamp(split[0])
                        .eventId(split[1])
                        .build();
                return itemEntity;
            }
        })
        .filter(Objects::nonNull)
        .assignTimestampsAndWatermarks(new AscendingTimestampExtractor<ItemEntity>() {
            @Override
            public long extractAscendingTimestamp(ItemEntity itemEntity) {
                long timestamp = itemEntity.getTimestamp();
                return timestamp;
            }
        });
streamOperator
        .keyBy(new KeySelector<ItemEntity, String>() {
            @Override
            public String getKey(ItemEntity itemEntity) throws Exception {
                String eventId = itemEntity.getEventId();
                return eventId;
            }
        })
        .window(TumblingEventTimeWindows.of(Time.seconds(5)))
        .process(
                new ProcessWindowFunction<ItemEntity, Tuple2<String, String>, String, TimeWindow>() {
                    @Override
                    public void process(String s, Context context,
                            Iterable<ItemEntity> iterable,
                            Collector<Tuple2<String, String>> collector) throws Exception {
                        for (ItemEntity itemEntity : iterable) {
                            long timestamp = itemEntity.getTimestamp();
                            Date date = new Date(timestamp);
                            SimpleDateFormat simpleDateFormat = new SimpleDateFormat(
                                    "yyyy-MM-dd HH:mm:ss");
                            collector.collect(Tuple2.of(itemEntity.getEventId(),
                                    timestamp + "->" + simpleDateFormat.format(date)));
                        }
                    }
                })
        .print();
env.execute("test-window");

5秒的窗口

2020-04-01 00:01:00,1
2020-04-01 00:01:00,1
2020-04-01 00:01:06,1 # 触发计算
(1,1585670460000->2020-04-01 00:01:00)
(1,1585670460000->2020-04-01 00:01:00)
2020-04-01 00:01:00,1 # 窗口已经关闭，旧数据
# WARN  org.apache.flink.streaming.api.functions.timestamps.AscendingTimestampExtractor [] - Timestamp monotony violated: 1585670460000 < 1585670466000
2020-04-01 00:01:06,1
2020-04-01 00:01:07,1
2020-04-01 00:01:11,1 # 触发计算
(1,1585670466000->2020-04-01 00:01:06)
(1,1585670466000->2020-04-01 00:01:06)
(1,1585670467000->2020-04-01 00:01:07)

0.2 window的抽象概念

Keyed Windows

stream
       .keyBy(...)               <-  keyed versus non-keyed windows
       .window(...)              <-  required: "assigner"
      [.trigger(...)]            <-  optional: "trigger" (else default trigger)
      [.evictor(...)]            <-  optional: "evictor" (else no evictor)
      [.allowedLateness(...)]    <-  optional: "lateness" (else zero)
      [.sideOutputLateData(...)] <-  optional: "output tag" (else no side output for late data)
       .reduce/aggregate/fold/apply()      <-  required: "function"
      [.getSideOutput(...)]      <-  optional: "output tag"
Non-Keyed Windows

stream
       .windowAll(...)           <-  required: "assigner"
      [.trigger(...)]            <-  optional: "trigger" (else default trigger)
      [.evictor(...)]            <-  optional: "evictor" (else no evictor)
      [.allowedLateness(...)]    <-  optional: "lateness" (else zero)
      [.sideOutputLateData(...)] <-  optional: "output tag" (else no side output for late data)
       .reduce/aggregate/fold/apply()      <-  required: "function"
      [.getSideOutput(...)]      <-  optional: "output tag"

0.2.1 window assigner

0.2.2 window trigger

0.2.3 window evictor

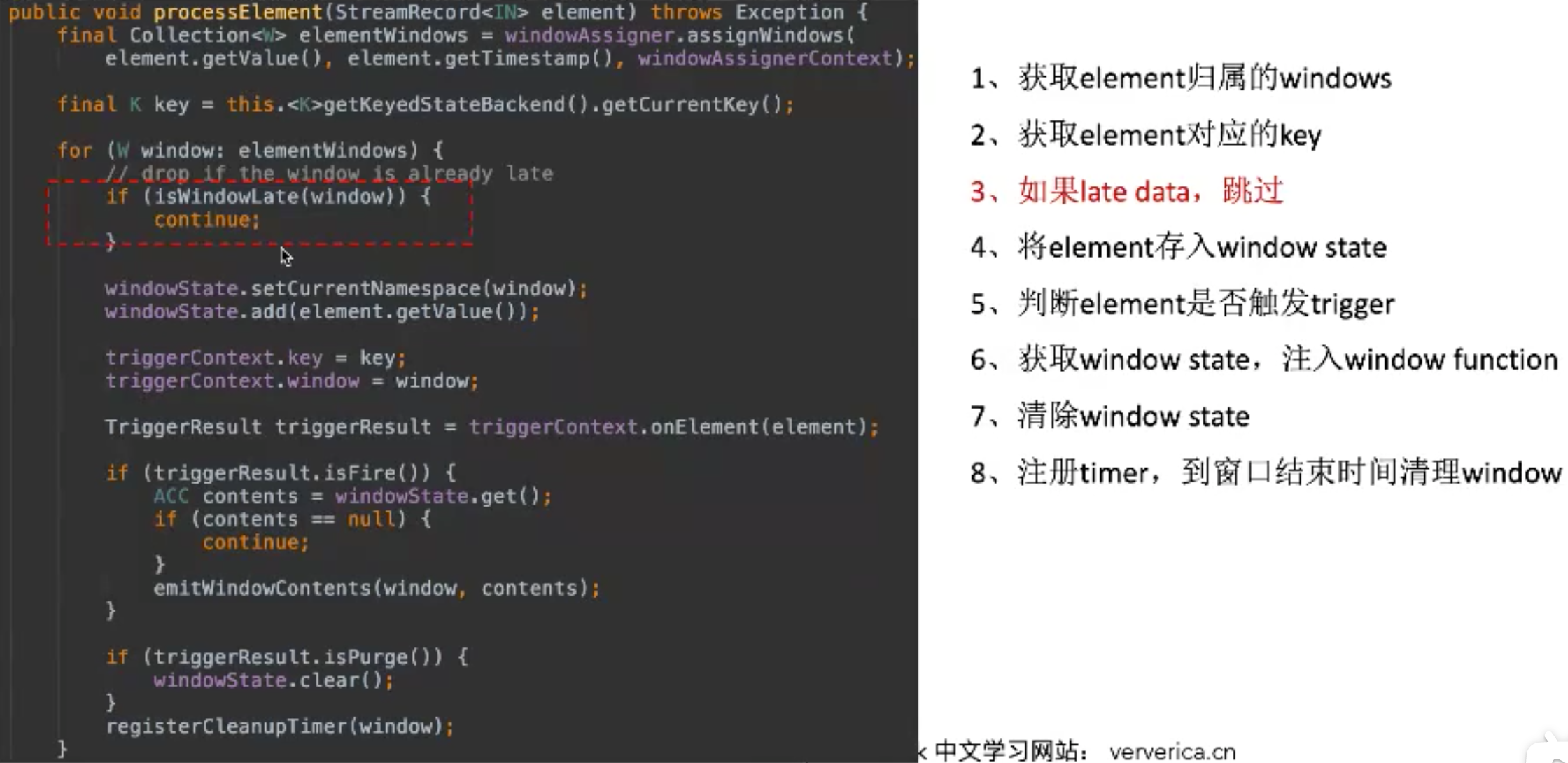

0.3 windowOperator工作流程

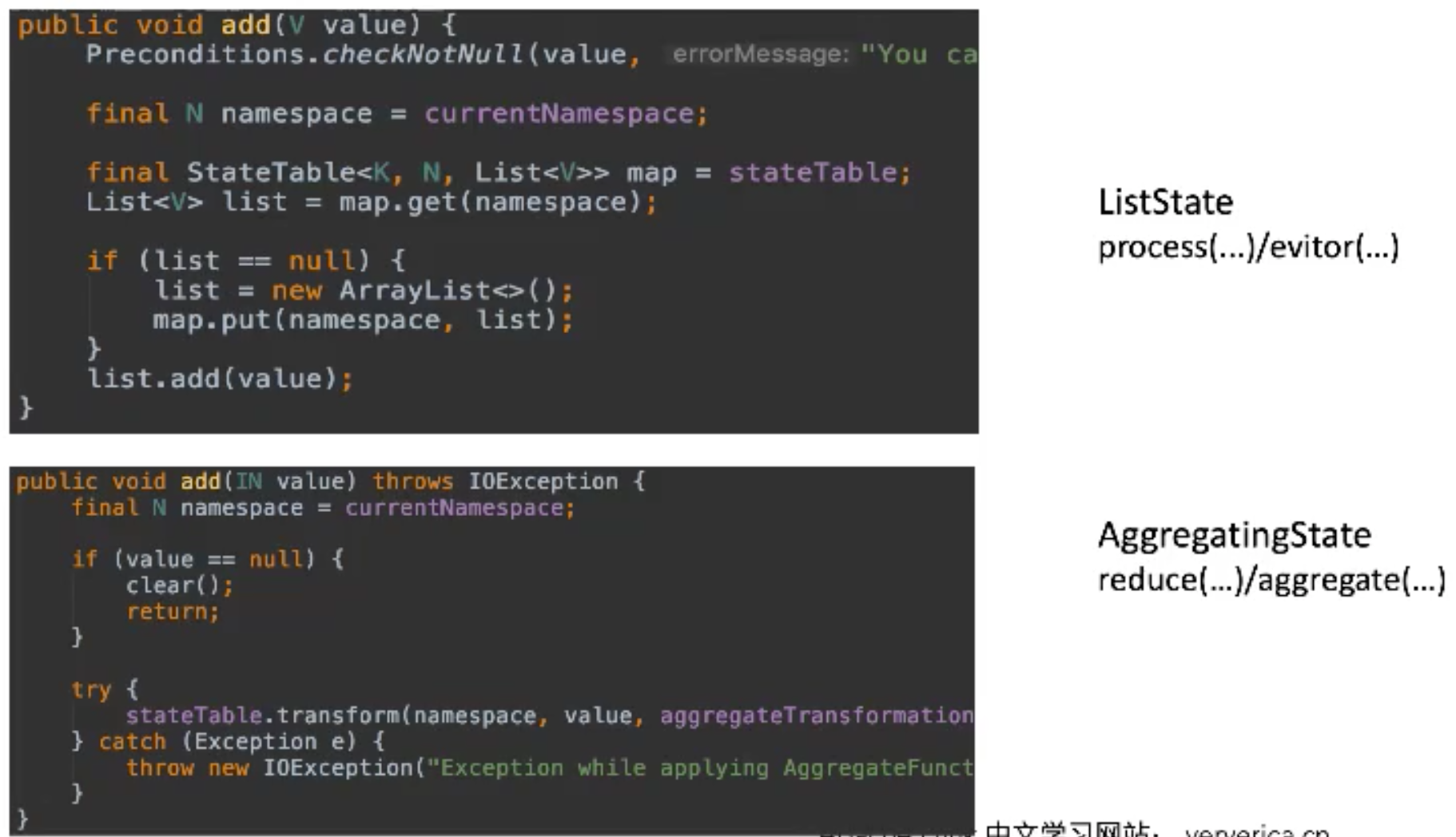

0.3.1 window state

0.4 Session window

Flink 原理与实现：Session Window

SESSION(time_attr, interval)定义一个会话时间窗口。
会话时间窗口没有一个固定的持续时间，但是它们的边界会根据 interval 所定义的不活跃时间所确定；即一个会话时间窗口在定义的间隔时间内没有时间出现，该窗口会被关闭。例如时间窗口的间隔时间是 30 分钟，当其不活跃的时间达到30分钟后，若观测到新的记录，则会启动一个新的会话时间窗口（否则该行数据会被添加到当前的窗口），且若在 30 分钟内没有观测到新纪录，这个窗口将会被关闭。会话时间窗口可以使用事件时间（批处理、流处理）或处理时间（流处理）。

流式数据处理中，很多操作要依赖于时间属性进行，因此时间属性也是流式引擎能够保证准确处理数据的基石。在这篇文章中，我们将对 Flink 中时间属性和窗口的实现逻辑进行分析。

0.5 all window operator’s parallelism is 1

If the parallelism of the environment is set to 3 and you are using a WindowAll operator, only the window operator runs in parallelism 1. The sink will still be running with parallelism 3. Hence, the plan looks as follows:

1
2
3

In_1 -\               /- Out_1
In_2 --- WindowAll_1 --- Out_2
In_3 -/               \- Out_3

The WindowAll operator emits its output to its subsequent tasks using a round-robin strategy. That’s the reason for the different threads emitting the result records of program.

When you set the environment parallelism to 1, all operators run with a single task.

keyed-windown —分布式计算—> all-windown
